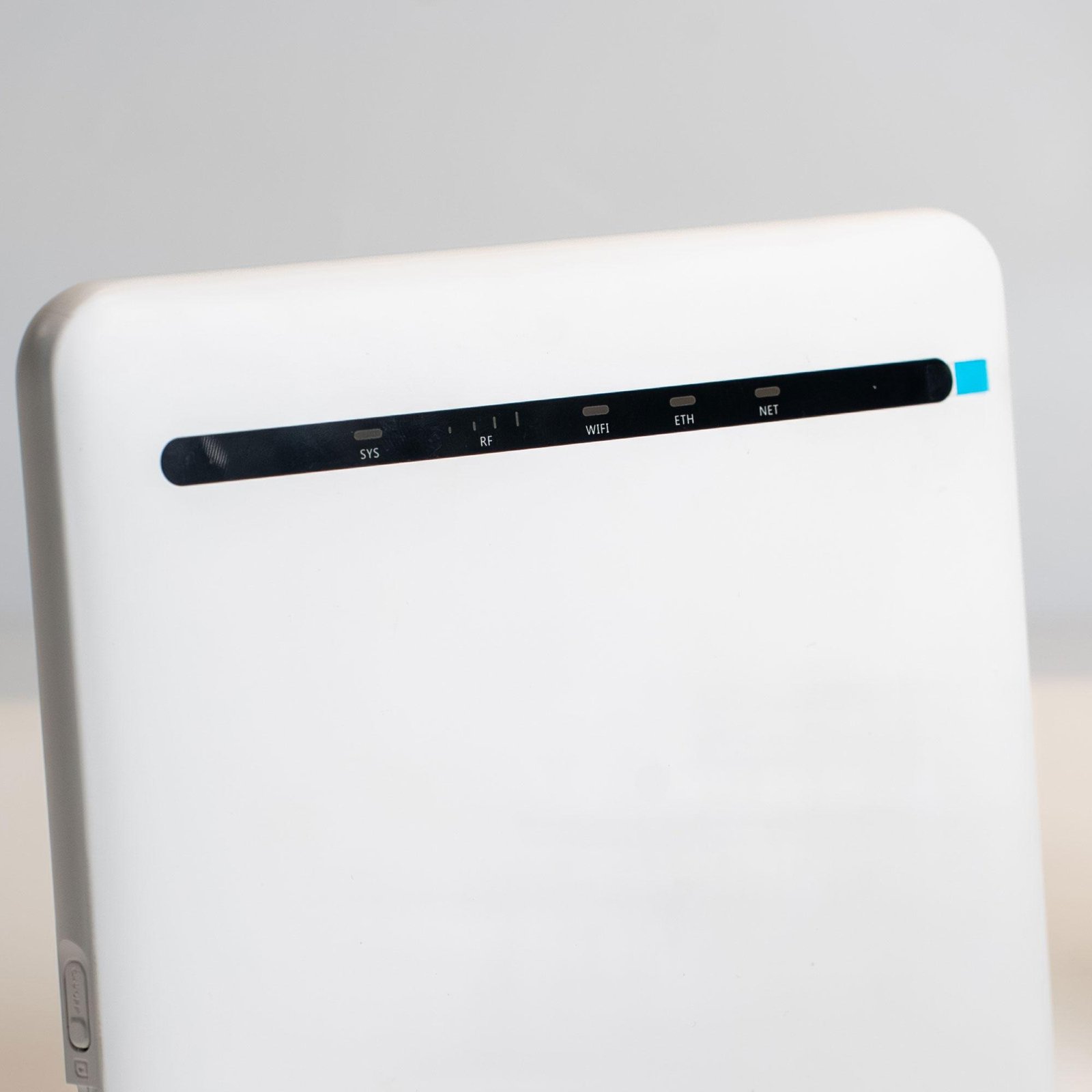

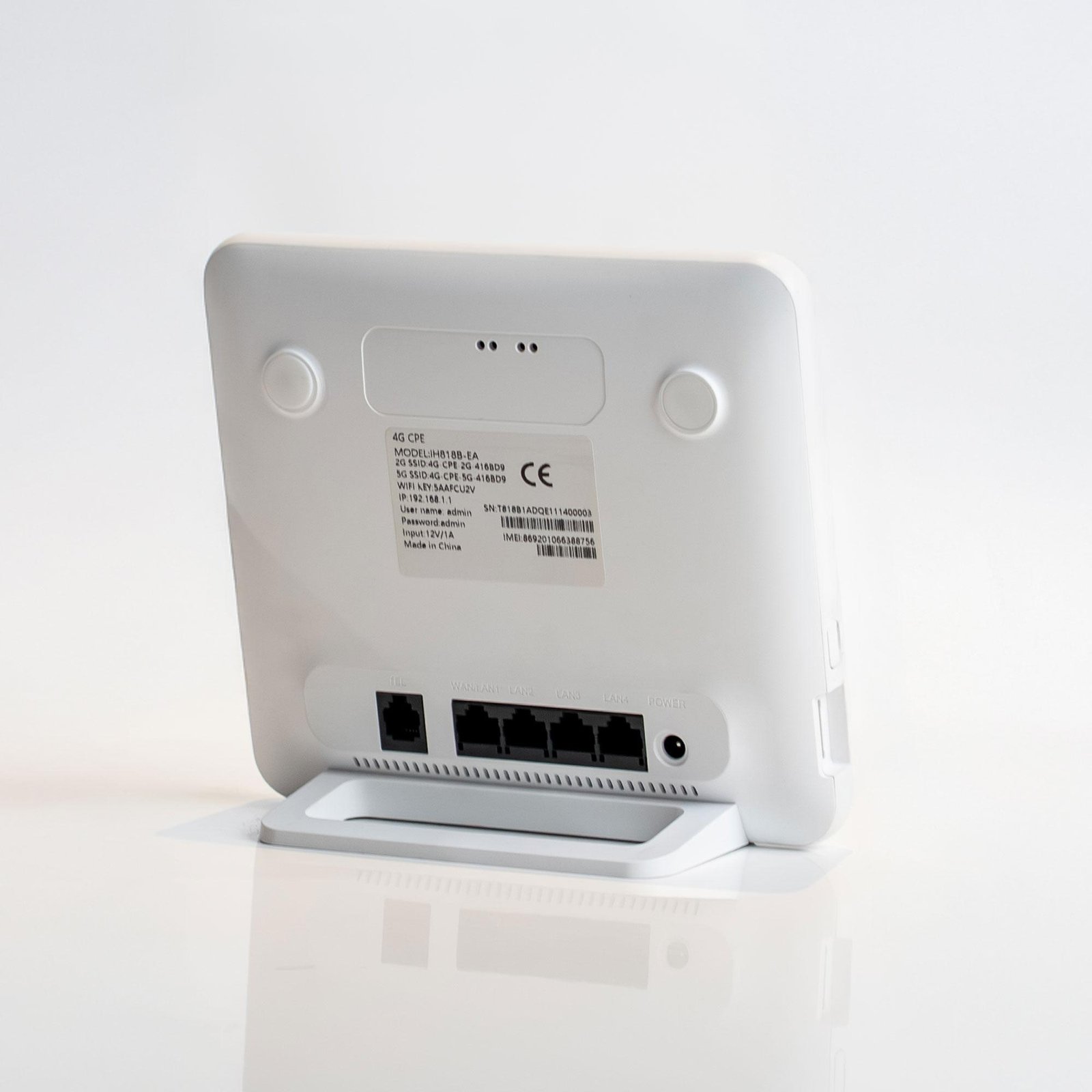

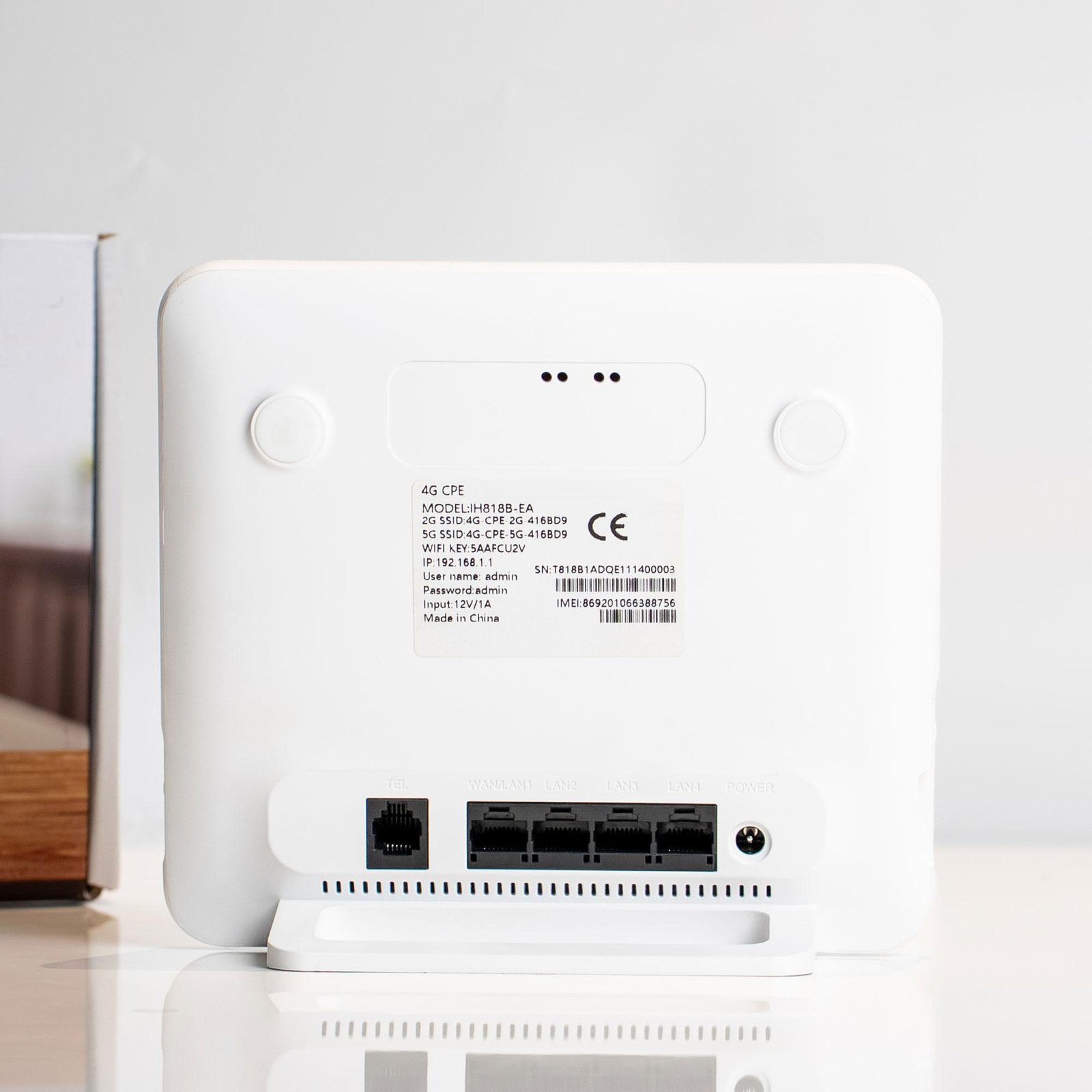

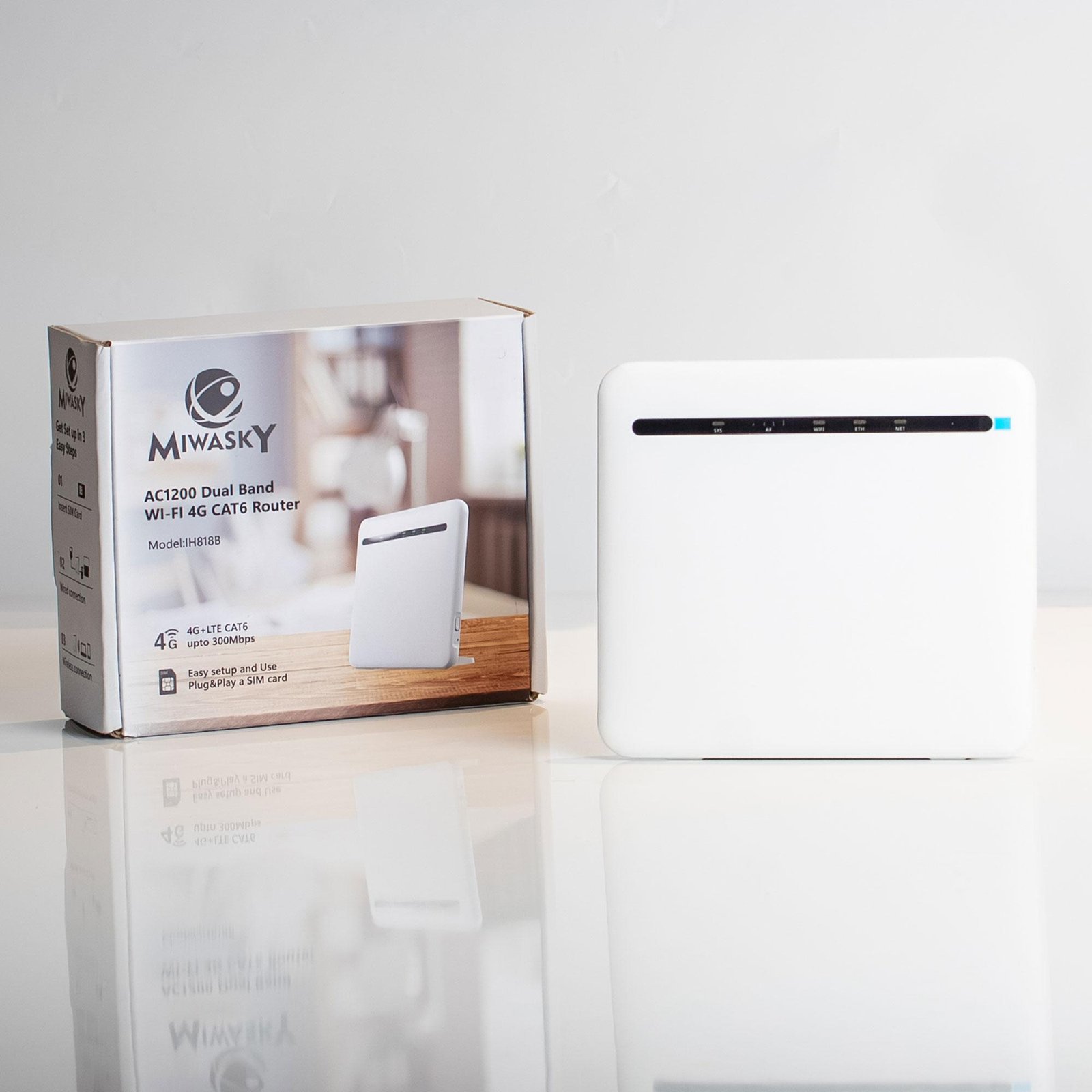

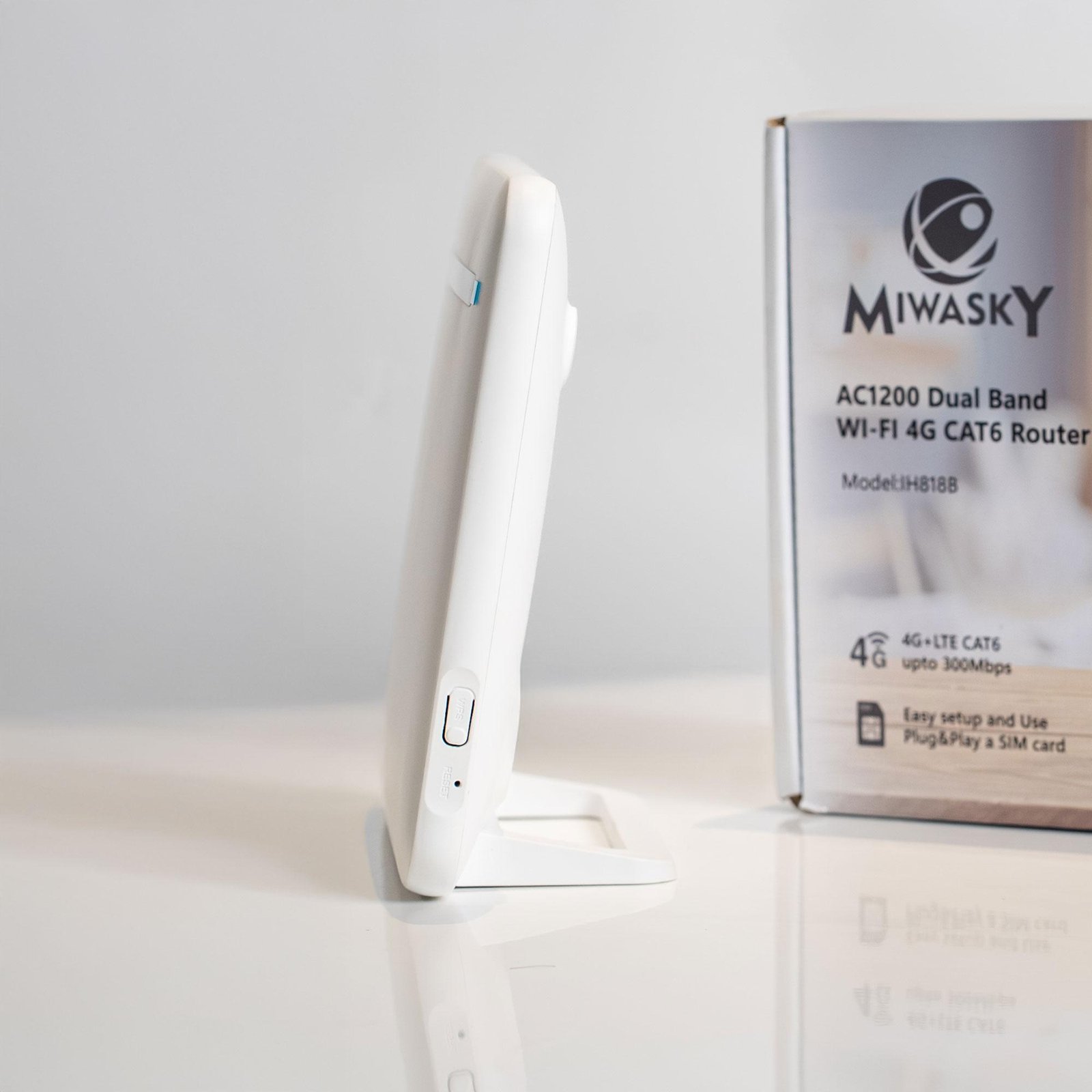

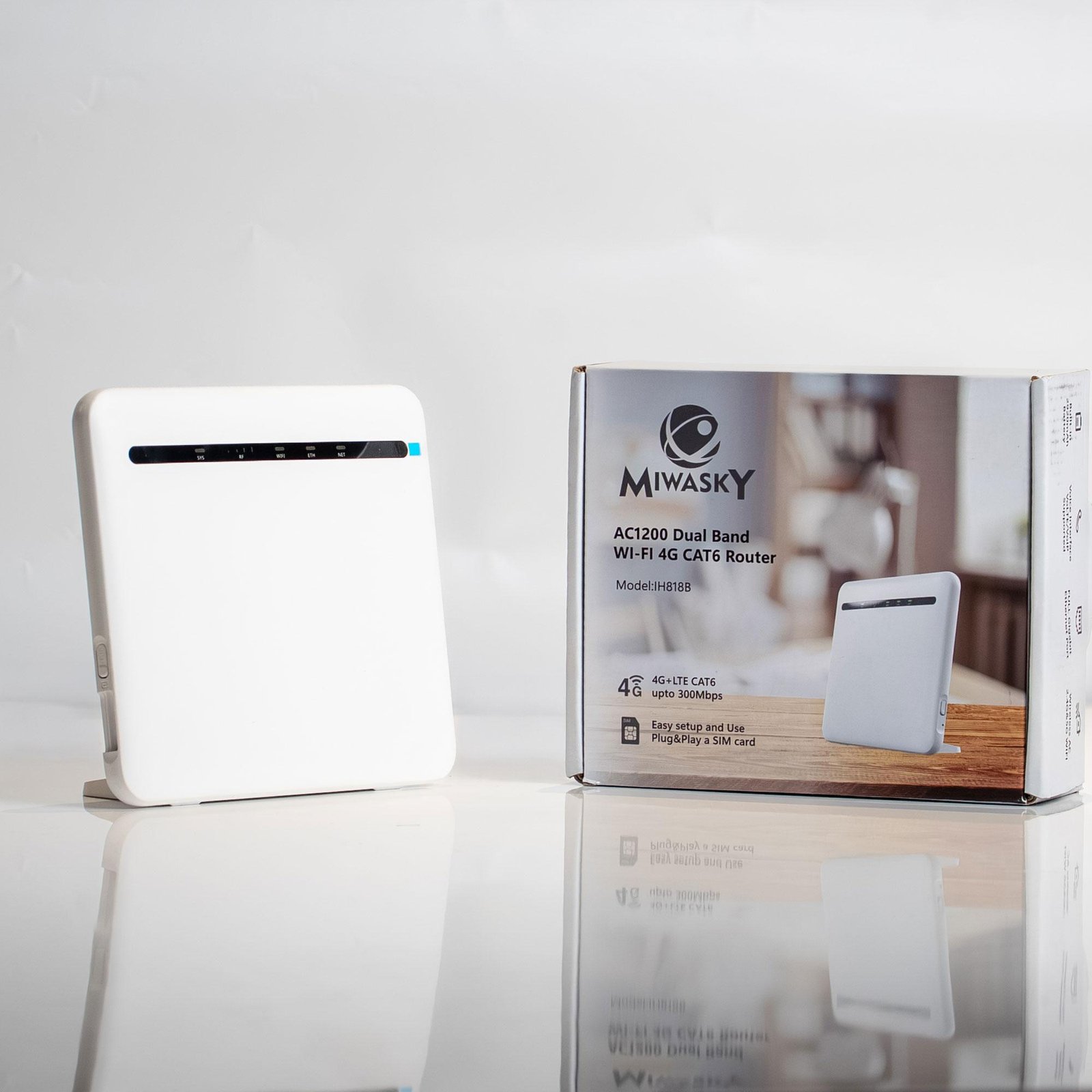

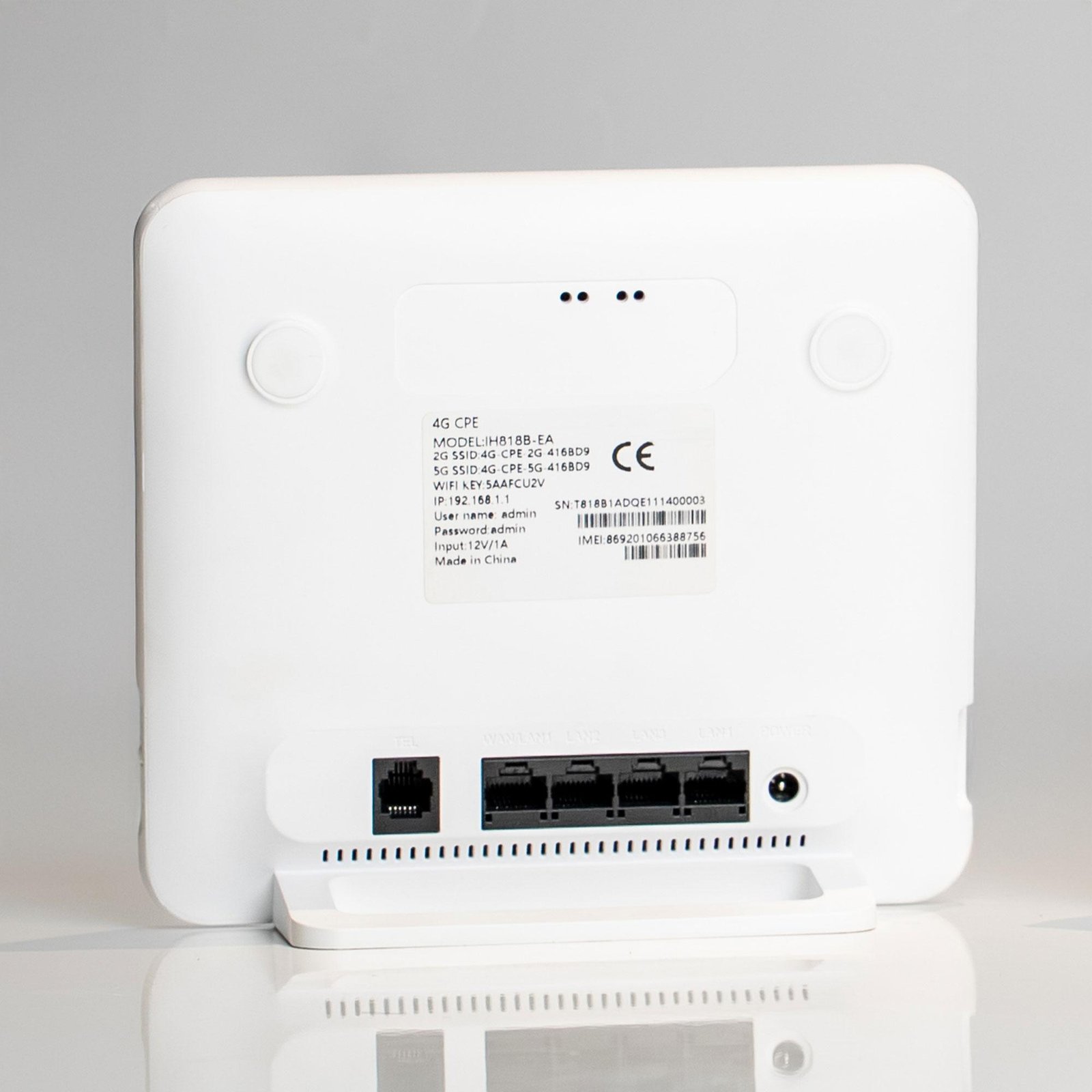

Miwasky IH818B 4G LTE CAT.6 CPE Router

General Information

• Model: IH818B
• Dimensions: 175.3mm * 167mm * 51.9mm
• Weight: About 0.95kg (Adapters and mounts not included)

Network Performance

• Technical Standard: Compatible with FDD-LTE, TDD-LTE, WCDMA.
• Maximum Data Throughput:
• FDD-LTE: 300Mbps (DL) / 50Mbps (UL)
• TDD-LTE: 223Mbps (DL) / 20.4Mbps (UL)
• DC-HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
• BB Chipset: ASR1828

Wi-Fi Specifications

• Standard: IEEE802.11 a/b/g/n/ac
• Frequency: 2.4G & 5GHz, DBDC
• Wi-Fi Chipset: RTL8192FR+QCA6174A-1

Hardware

• Memory (Modem): 1Gb+1Gb
• SIM Slot: 1*USIM Card Slot (2FF)
• Antennas: 2 internal Wi-Fi antennas, 2 internal LTE antennas, 2 optional external LTE antennas
• Buttons: Power, WPS , Pinhole Reset
• Power Voltage: DC12V/1A

Software & Features

• Network Protocols: Supports IPv4/IPv6
• Software Update: TR069, FOTA, and Local update methods supported
• LED Indicators: Power, RF Signal Strength, Wi-Fi/WPS, WAN/LAN Status, Internet Status

Environmental

• Operating Temperature: Normal: 0 ℃ to +45 ℃
• Storage Temperature: -20 ℃ to +70 ℃
• Humidity: 5% ~ 95%
